Container Dock Ramp With CE Certification exported to Indonesia
Specifications:
| Width | 2000mm |
| Total length | 11050mm |
| Capacity | 10ton |
| Adjust range | 1200~1700mm |
| Material | 32# "H" beam for main body, 14# "H" beam for bottom |
| Manual pump | Import from Italy, brand is " Oiltec" |
| Ramp weight | 3400kg |
| Warranty | 1 year for hydraulic system, 3 years for steel structure |
| Color | Optional |
Description:
1, We have 11 years experience in designing and customize the
container ramp as per customer’s
requirement.
2, Operate manner: Manual.
3, The 32# "H" beam steel structure for side-frame main body and
14# "H" beam for under-frame, and all the beam are whole beam, not
splice plate, make it much stronger than the common steel tube
structure.
4, Fixed lip structure suitable for any vehicle(including the
3-wheel forklift) to pass through.
5, 100% galvanized steel grating of the slope part, aim at rust
protection and skid resistance.
6, Capacity: 10ton, 15ton.
7, Two solid tyres provide excellent traction without worry of
puncture.
8, The end bracket can be connected with the forklift(we've drilled
two hole on the fork of forklift, then put rod of the bracket into
the hole of the fork) and can be moved by the forklift in any
direction. And the end bracket also is galvanized.

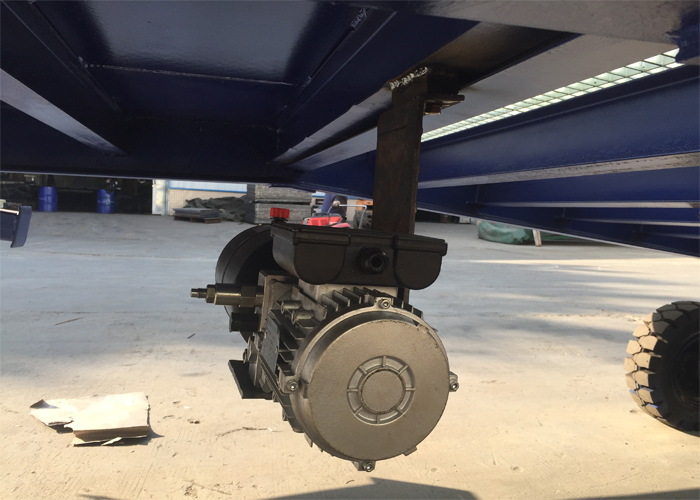

9, Operated with manual(If you need, we also can make electric for
you).
10, The power pack was imported from Italy, brand is "Oiltec".
11, The tightening chain's design between truck and mobile loading
ramp is easy for operation and safe.
12, Hydraulic retractable support leg is optional.
13, 1 year warranty for hydraulic system, 3 years warranty for
steel structure.
14, Hydraulic retractable support leg is optional.
15, The demension for every part can be customized to suit to
acture demand.

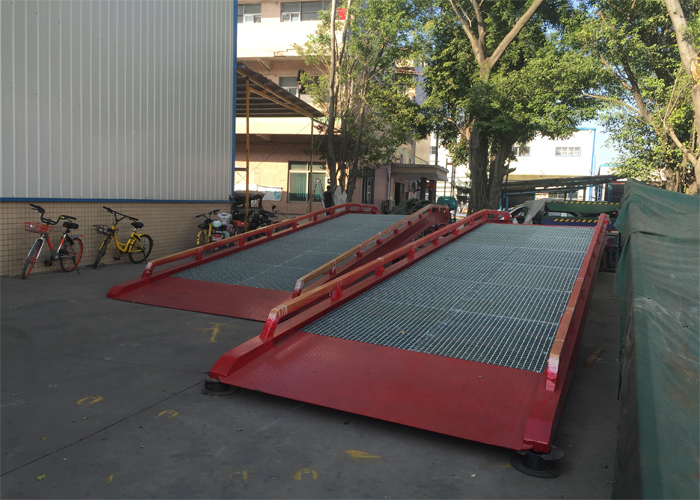

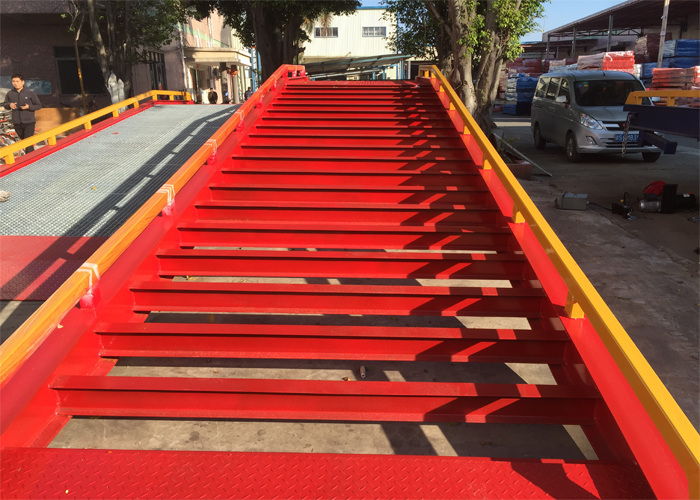

Products Picture:
