18Meters Long Reach Boom For Sany SY335C-9 Excavator With 0.7cbm
Bucket
Specifications:
Boom length | 11500 mm |
Arm length | 9500 mm |
Max extensive scope(A) | 20600 mm |
Max dig depth(B) | 15500 mm |
Max dig height(D) | 15920 mm |
Max dig depth in vertical wall(C) | 14328mm |
Max unloading height(E) | 12920 mm |
Min rotate radius(F) | 4600 mm |
Bucket volume | 0.6m3 |
Counter weight | NO |
Folding height | 3040mm |
Description:
1, Long reach boom are used for dredging rivers port construction,
railway construction and groundwork construction, with high
extensive operation scope, high efficiency and high security.
2, Our company established on years 2006, we have over 10 years
experience in designing and customize the long reach boom for all
brand excavators.
3, Excavator model Sany SY335C-9, original is 5pcs steel pipes.
4, The main material of this long boom is Q345B + Q690D, the top
and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4.
5, Total length 18meters, bucket 0.7m3.
6, Bucket cylinder 100% use Sany original cylinder.
7, Arm cylinder use original cylinder. But if need use prepare arm
cylinder, also no problem.
8, At the end of arm, we welded the reinforce plate made the long
reach more durable.
9, The manufacture time about 20 days. Warranty time 6 month after
products arraived destination port.
Quality Management
From selecting materials, designing, producting to checking,
selling and after service. We are strictly in accordance with ISO
9001:2008, ensuring to supply best products and service to our
customers.
Leading design
We especially established design&research team, introducing and
training college students every year. More than a dozen of our
designs have acquired parctical patent.
Fine selection for material
Our company have perfect raw materials and spare parts supply
system, we can choose the right material according to the work
environment of customer's machine.
Lean production
Al of our welding workers have more than 12 years welding
experiences. They can successful deal with stress deformation. All
our products should be treated by sand blasting and 3-times
painting.
Good delivery time
Our company highly integrated designing, producing, checking and
selling together. Our delivery time is the best.
After service system
We have complete after service system. We have stock for all kinds
spare parts, we can deliver you the spare parts at any time.

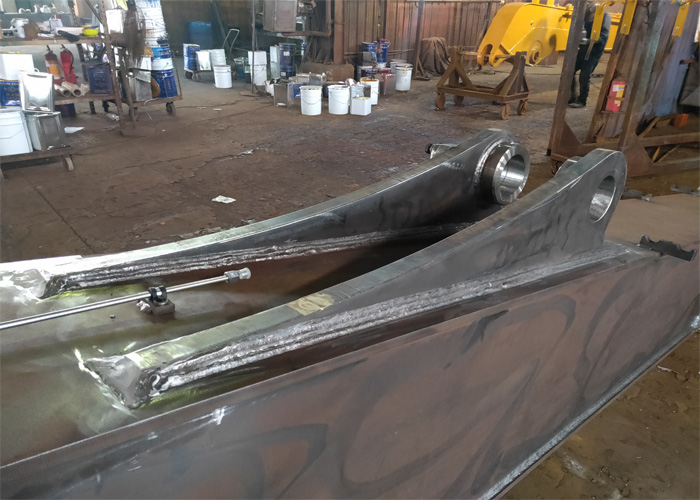

Detailes Pictures:
