Long Reach Boom for Excavator of CAT E200B with20meters length
Description:
1, We are the one of the biggest manufacturer for long reach boom
in GuangDong, we can customize the long reach boom for all kinds of
excavator as per your request. Operation scope 13 meters to 32
meters.
2, Long reach boom are used for dredging rivers port construction,
railway construction and groundwork construction, with high
extensive operation scope, high efficiency and high security.
3, Original excavator performance.
4, Improves operation scope.
5, Made by high strength steel plate.
6, Our company established on years 2006, we have over 10 years
experience in designing and customize the long reach boom for all
brand excavators.
7, This long reach boom include lubricant pipe system, hydraulic
system, 1 bucket with 0.4cbm, 1 counter weight with 4 ton. 1
linkage, 6 pins and 4 hoses.
8, The counter weight was installed in the middle of excavator
bottom.
9, As customer request, stick cylinder and bucket cylinder of this
long boom use Sany original cylinder, but if you need we prepare it
for you, also no problem, we can make it.
10, If you need, we can add extra pipeline for you, to suit some extra
application.
11, Our welding was by maual. Welding is protective-gas welding,
the protective gas is 80% Argon and 20% CO2 mixed. This is golden
standard for protective gas.
12, The main material of this long boom is Q345B + Q690D, the top
and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4.
13.Some parts can be consolidated using thicker plate or
overlapping another plate for heavy-duty application.
14, Before welding, we have use big edge milling machine mill(taper
process) the edge of the sheet. So the welding can go to the
internal of the steel-sheet and make the structure have higher
performance.
15, For all base,joint and other main structure of the long boom,
we use boring machine adjust the precision after welding, to avoid
the welding-stress leading to big tolerance.
16, We will also supply parts list for the long reach boom, so it’s
easy for Maintenance and after-sales service.
17, The manufacture time about 15 days. Warranty time 6 month after
installation.
Specifications:
Boom length | 11000 mm |
Arm length | 9000 mm |
Max extensive scope(A) | 19600 mm |
Max dig depth(B) | 14500 mm |
Max dig height(D) | 14920 mm |
Max dig depth in vertical wall(C) | 13328mm |
Max unloading height(E) | 11920 mm |
Min rotate radius(F) | 4600 mm |
Bucket volume | 0.4m3 |
Counter weight | 4ton |
Folding height | 3040mm |

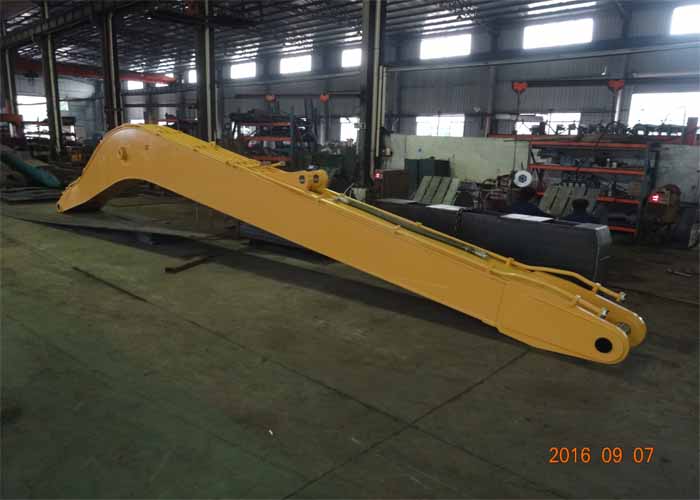

Production Pictures:
