Q345B / Q690D 11 Meter Standard Excavator Long Arm For Construction
Sites
Specifications:
Boom length | 6500 mm |
Stick length | 4500 mm |
Max extensive scope | 10600 mm |
Max dig depth | 7100 mm |
Max dig height | 10100 mm |
Max dig depth in vertical wall | 5800 mm |
Max unloading height | 6900 mm |
Min rotate radius | 5900 mm |
Bucket volume | 5.0 m3 |
Counter weight | NO |
Folding height | 4420mm |
Description:
1. We have detailed dimension of Komatsu PC1100,we can customize
this long boom for your PC1100 excavator.
2. We specialized in customizing all kinds of long boom for all
kinds of excavators.
3. Main sheet Material of this Komatsu PC1100 long reach boom / arm
is Q345B + Q690D,the top and bottom cover plate of boom and stick
is Q690D,other sheet is Q345B,Pin’s material is 42CrMo4.
4.Because Komatsu PC800 boom base is U-shape,not a straight tube.So
we use special cast base block for U-shape base,much better
performanse for welding-base.
5. Before welding,we have use big edge milling machine mill the
edge of the sheet.So the welding can go to the internal of the
steel-sheet and make the structure have higher performance.
6. Welding is protective-gas welding,the protective gas is 80%
Argon and 20% CO2 mixed.This is golden standard for protective gas
7. For all base,joint and other main structure of the long boom,we
use boring machine adjust the precision after welding,to avoid the
welding-stress leading to big tolerance.
8. We will prepare lubricant pipe system,hydraulic
system,bucket,bucket cylinder,linkage,pins and hoses for the long
boom we supply you.
9.We prepare good quality cooper power casted bushing for the long
reach boom/arm
10. This long reach boom,stick cylinder use original stick cylinder
to save the cost,if you need the stick cylinder,we also can prepare
for you.
11. If necessary,we can prepare 1 kit or 2 kit (each kit have 2
pipe lines) extra auxiliary pipe line for the attachments.
Applications:
1. Customer only hope the long reach boom is a little longer than
standard original boom.
2. Do same work as standard boom excavator

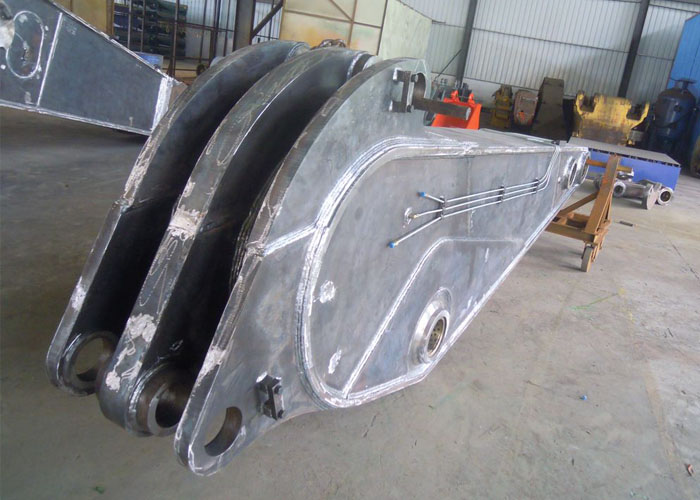

Factory pictures:
