    4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier

    Ask Lasest Price
    Brand Name : Haide
    Model Number : HD-HGT10-L4200
    Certification : CE/ISO
    Price : Negotiation(EXW,FOB or CIF price)
    Supply Ability : 60 sets per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier


    4200mm Two Cylinders Power Ramp Dock Leveler For Warehouse Pier


    Specifications:

    Specification of this dock leveler:

    Equipment Specification(W*L*H): 2000mm*4200mm*490mm
    Pit Dimension(W*L*H): 2040mm*L4180mm*500mm
    Dynamic Capacity: 10 ton
    Adjust range: +600mm/-300mm
    Main deck thickness: 8mm
    Lip board thickness: 16mm
    Power pack: : Italy "Hydr-APP" 1.5 KW 340~415V 3P 50&60Hz
    Warranty: 365 days after installation for all, 5 years warranty for the steel structure.


    Description:


    We can customize all kinds of hydraulic dock levelers for customers.


    This big size dock leveler,we customize for an UAE customer.Customer's wearhouse dock height only 1100mm,but the container truck floor is 1500~1600mm,so we customize this big size dockleveler for his wearhouse.


    With These docklevelers,customer forklift can be driven into all truck compartments & containers for loading & unloading.


    1. two cylinders design for big size dock leveler.


    2. Power pack also big power motor (Italy "Hydr-app" 1.5KW).


    3. We can manufacture the Hydraulic dock leveler with capacity from 10 ton to 25 ton.

    4. Operation process: Push "UP" button, platform begin to rise. When it rise to highest point, push "EXTEND" button, lip extend out. Then press "DOWN" button, platform and lip lower down to rest on the truck box bed. When loading&unloading is over, then press "UP" botton, platform and lip begin to rise. When platform and lip get away from the truck box bed, then press "RETRACTION" button, lip retract. The push "DOWN" button, then dock leveler restore to original stored position.

    5. We will prepared two laminated bumper for all the dock levelers we supply.


    6.Just give us the pit dimension,we can produce the dock leveler to suit for the pit.


    All our standard dock leveler dimensions:

    ModelSpecification(W*L*H)mmPit Dimension(W*L*H)mmAdjust rangeLip board(W*L*T)
    6*61830*1830*4901870*1680*500+250mm/-200mm1830*400*15
    6.5*61980*1830*4902020*1680*5001980*400*15
    7*62130*1830*4902170*1680*5002130*400*15
    6*81830*2440*490(590)1870*2280*500(600)+300mm/-300mm1830*400*15
    6.5*81980*2440*490(590)2020*2280*500(600)1980*400*15
    7*82130*2440*490(590)2170*2280*500(600)2130*400*15
    6*101830*3050*490(590)1870*2880*500(600)+400mm/-300mm
    If the height is 590mm:
    +450mm/-350mm
    1830*400*15
    6.5*101980*3050*490(590)2020*2880*500(600)1980*400*15
    7*102130*3050*490(590)2170*2880*500(600)2130*400*15

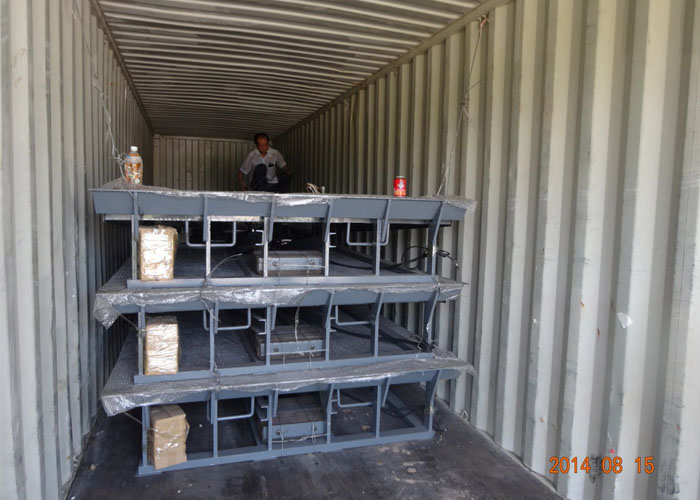

    Delivery pictures:

    These 6 unit docklevelers was export to UAE
