18 Meters Long Reach Boom With 2ton Counterweight For Sany SY235
Excavator
Specifications:
Boom length | 10000 mm |
Arm length | 8000 mm |
Max extensive scope | 17300 mm |
Max dig depth | 12100 mm |
Max dig height | 15300 mm |
Max dig depth in vertical wall | 10680 mm |
Max unloading height | 12300 mm |
Min rotate radius | 5200 mm |
Bucket volume | 0.5 m3 |
Counter weight | 2 ton |
Folding height | 3300mm |
Features:
1. Suitable for all makes and models of excavators.
2. Standard supply includes: bucket, connecting rod, bucket
cylinder, 4 steel pipes, 4 high-pressure hoses, 6 pins, and
lubrication system.
3. A variety of different materials such as Q345B, Q690D, Weldox
are available to meet your application.
4. If the boom is extended more than 24.5m, the boom can be two
connecting pieces to make it suitable for the container.
5. Before welding, all side plates are processed by beveling
machine, so that the weld seam has high strength, uniformity and
firmness.
6.6 months warranty.
7. Some parts can be reinforced with thicker sheets or overlapping
another sheet for heavy duty applications.
8. Boom cylinder and forearm cylinder can also be provided
according to customer requirements.
9. Additional piping can be added to accommodate some additional
applications.
10. This long arm is used for Sany SY235 excavator, the length is
18M, the counterweight is 2 tons, and the excavation bucket is 0.5
cubic meters.
11. It has been exported to India Sany dealer, the imported our
long reach for Sany 12 units one time, every year ordered about 100
units.
12.We can provide many reference in
Australia,Europe,India,Philippine, Russia,South
Africa,Indonesia,Canada,Bangladesh and South America. We have many
big dealers in these countries.
Certificate and Documents:
1.CE and ISO certificate are available.
2.Brochure in PDF format is available.
Packing and shipping:

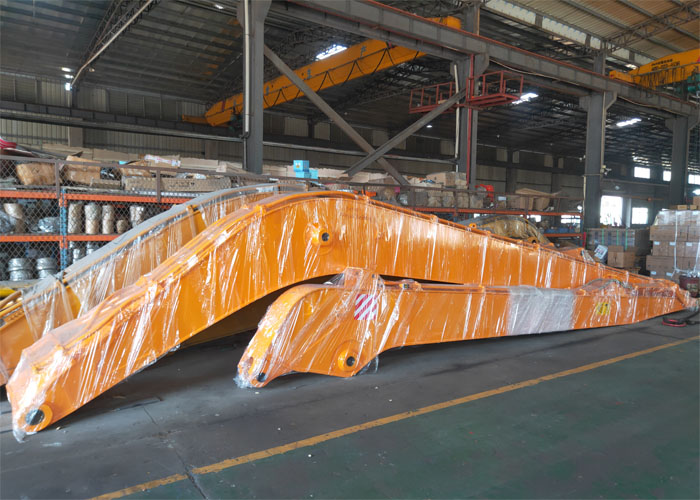

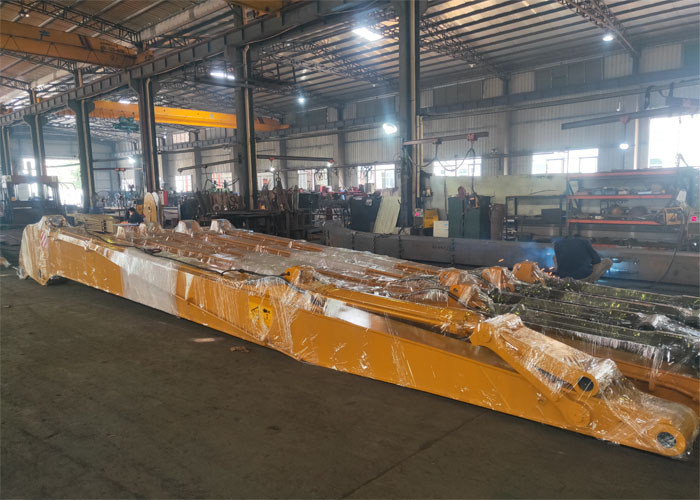

1.We pack it by film at first, then secure it inside the container
by fixing to the container wall through steel wire.
2.One container can load 3 complete sets(we use rack to hold the
upper sets).
3.Production leadtime is 15 days for 1 set, 20 days for 3 sets.
Common Models:
| Model | LDB120 | LDB200 | LDB220 | LDB300 | LDB350 | LDB400 | LDB450 |
Total length (mm) | 13000 | 15380 | 15380 | 18000 | 20000 | 22000 | 24000 |
Weight (kg) | 3000 | 4000 | 4200 | 5200 | 6000 | 6500 | 7000 |
Max dig depth (mm) | 9000 | 11340 | 11370 | 13000 | 15000 | 16500 | 18000 |
Max extensive Scope (mm) | 12500 | 15100 | 15100 | 17600 | 19600 | 21600 | 23600 |
Max dig height (mm) | 11300 | 12510 | 12610 | 13720 | 14920 | 16100 | 17300 |
Folding height (mm) | 2900 | 2980 | 3040 | 3210 | 3210 | 3400 | 3400 |
Bucket volume (m3) | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
Excavator Tonnage(ton) | 12 | 20 | 22 | 30 | 35 | 40 | 45 |
Pictures:
