Heavy Duty Excavator Long Reach Boom And Stick For PC800LC-7 with
1.0cbm bucket
Description:
1, Dongguan Haide Machinery is the biggest manufacturer of
excavator long reach boom and stick in South of China now.
2, Long reach boom are used for dredging rivers port construction,
railway construction and groundwork construction, with high
extensive operation scope, high efficiency and high security.
3, Our company established on years 2006, we have over 13 years
experience in designing and customize the long reach boom for all
brand excavators. 13 years manufacturer make us more and more
perfessional on this areal.
4, The main material of this long boom is Q345B + Q690D, the top
and bottom cover plate use Q690D, other place use Q345B. Pin’s material is 42CrMo4.When select the material of the long boom,according to the boom
length,excavator model,attachment self-weight etc, most important
is the working condition, we will select the right material to
suggest you.
5, This long reach was suit for PC800LC-7, total length is 24M with
4ton extra counterweight, bucket 1.0cbm.

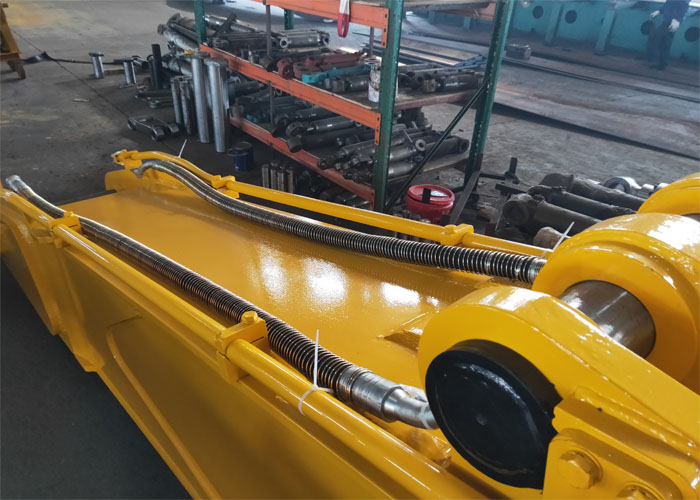

6, The hose was used AEROQUIP brand from America.
7, All of our long reach before welding, the plate was made
beveling, made the welding more stronger. A good products was based
on good material and good welding. Material is important, so we use
Q690D on bottom and above plate. But the welding also very
important.You can see our welding very very good
8, For this big machine long reach, the stick cylinder was designed
protection plate as picture.
9, We can customize all the brand excavator long reach for
customers. And almost excavator we have the full dimensions.
6, The total length of long reach and bucket size is depends on how
big of your excavator. More big excavator and make more longer long
reach.
7, Bucket cylinder 100% use Sany original cylinder.
8, For save cost, most of customer asked arm cylinder use original
cylinder. But if need use prepare arm cylinder, also no problem.
9, At the end of arm, we welded the reinforce plate made the long
reach more durable.
10, The manufacture time about 20 days. Warranty time 6 month after
products arraived destination port.
11, If you need more informations, pls email me or call me.
Whatsapp +86-13532367107
12, Welcome to visit our factory, here have many long reach are in
manfuacturing.
Quality Management
From selecting materials, designing, producting to checking,
selling and after service. We are strictly in accordance with ISO
9001:2008, ensuring to supply best products and service to our
customers.
Leading design
We especially established design&research team, introducing and
training college students every year. More than a dozen of our
designs have acquired parctical patent.
Fine selection for material
Our company have perfect raw materials and spare parts supply
system, we can choose the right material according to the work
environment of customer's machine.
Lean production
Al of our welding workers have more than 12 years welding
experiences. They can successful deal with stress deformation. All
our products should be treated by sand blasting and 3-times
painting.
Good delivery time
Our company highly integrated designing, producing, checking and
selling together. Our delivery time is the best.
After service system
We have complete after service system. We have stock for all kinds
spare parts, we can deliver you the spare parts at any time.
Specifications:
Boom length | 11500 mm |
Arm length | 9500 mm |
Max extensive scope(A) | 23600 mm |
Max dig depth(B) | 18500 mm |
Max dig height(D) | 18920 mm |
Max dig depth in vertical wall(C) | 16328mm |
Max unloading height(E) | 14920 mm |
Min rotate radius(F) | 4600 mm |
Bucket volume | 1.0m3 |
Counter weight | 4ton |
Folding height | 3540mm |
